Please confirm specifications before ordering

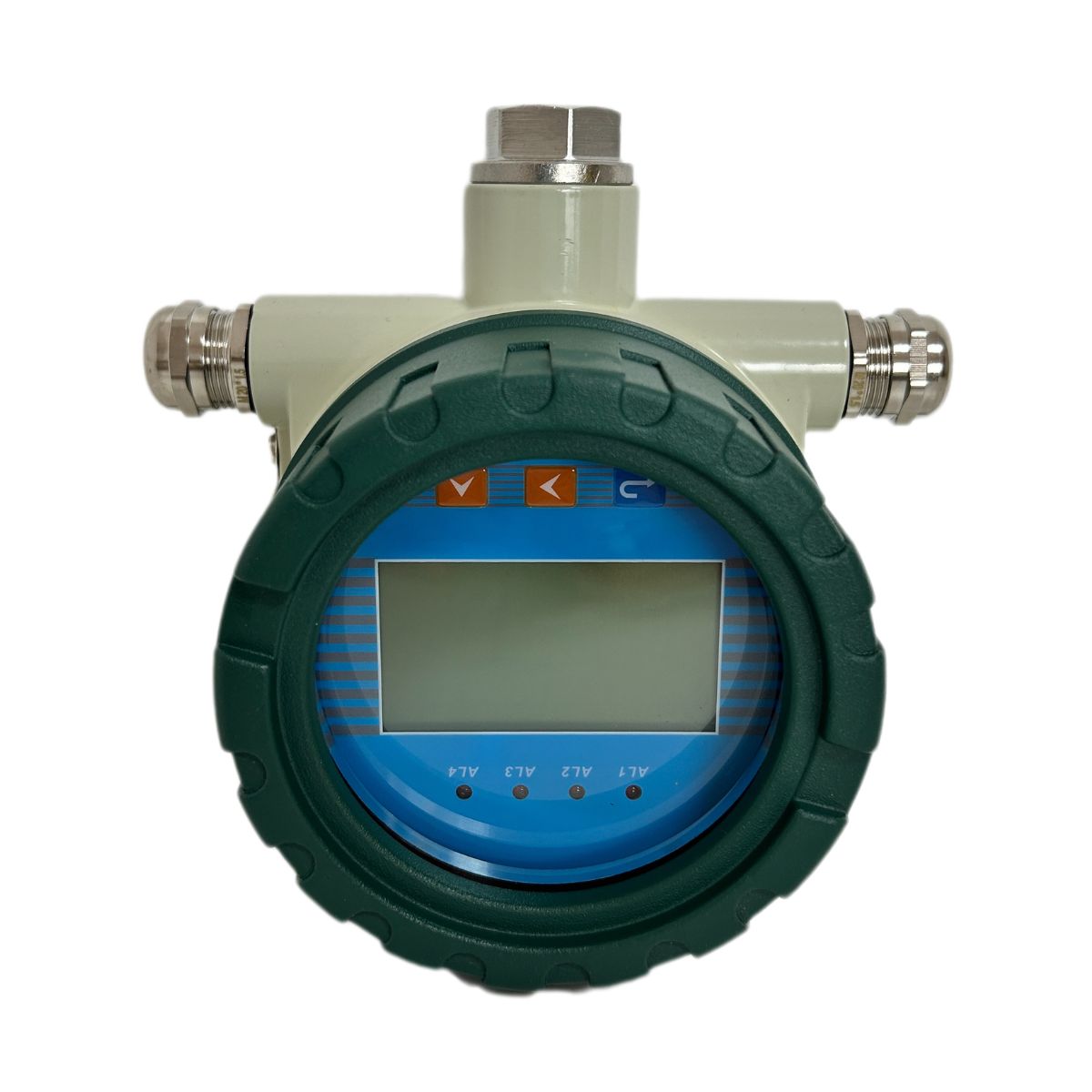

The 5-digit high-precision tank-side display controller adopts a 24-bit A/D converter and integrates it with a 32-bit high-performance industrial-grade MCU. It enables the acquisition, display and control output of 4-20mA signals. Equipped with a wide-viewing-angle and low-temperature-resistant LCD screen, the tank-side display is suitable for use in various working conditions.

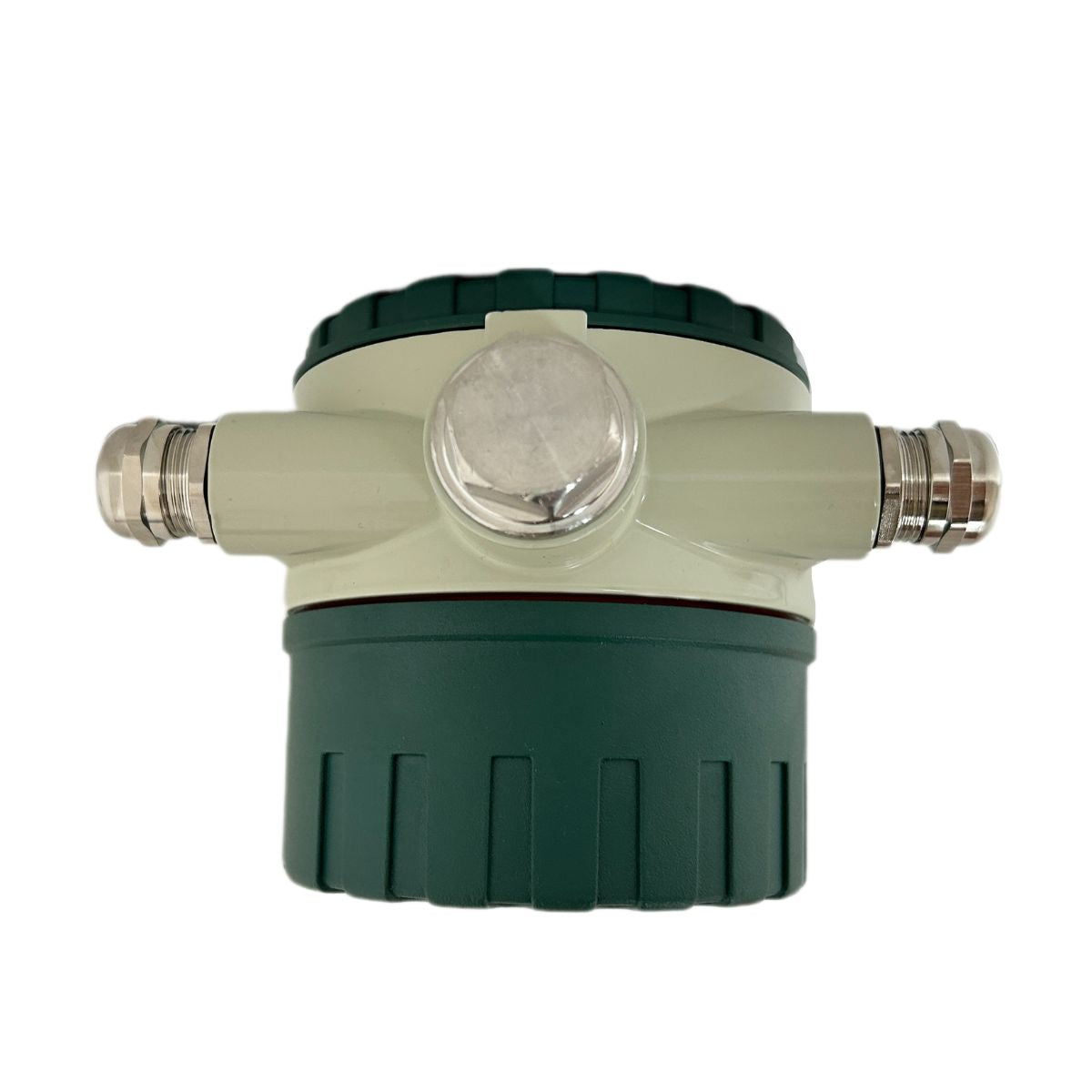

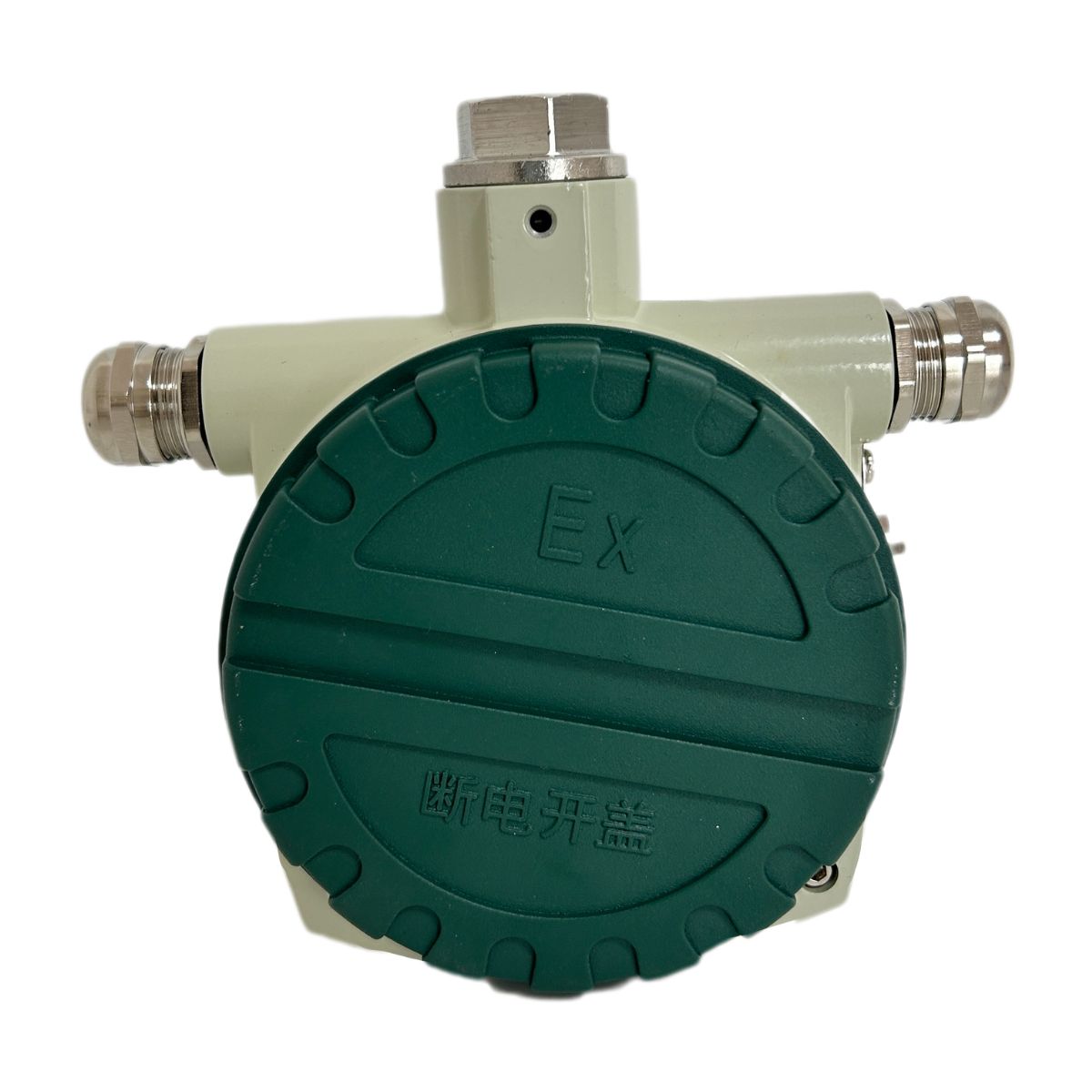

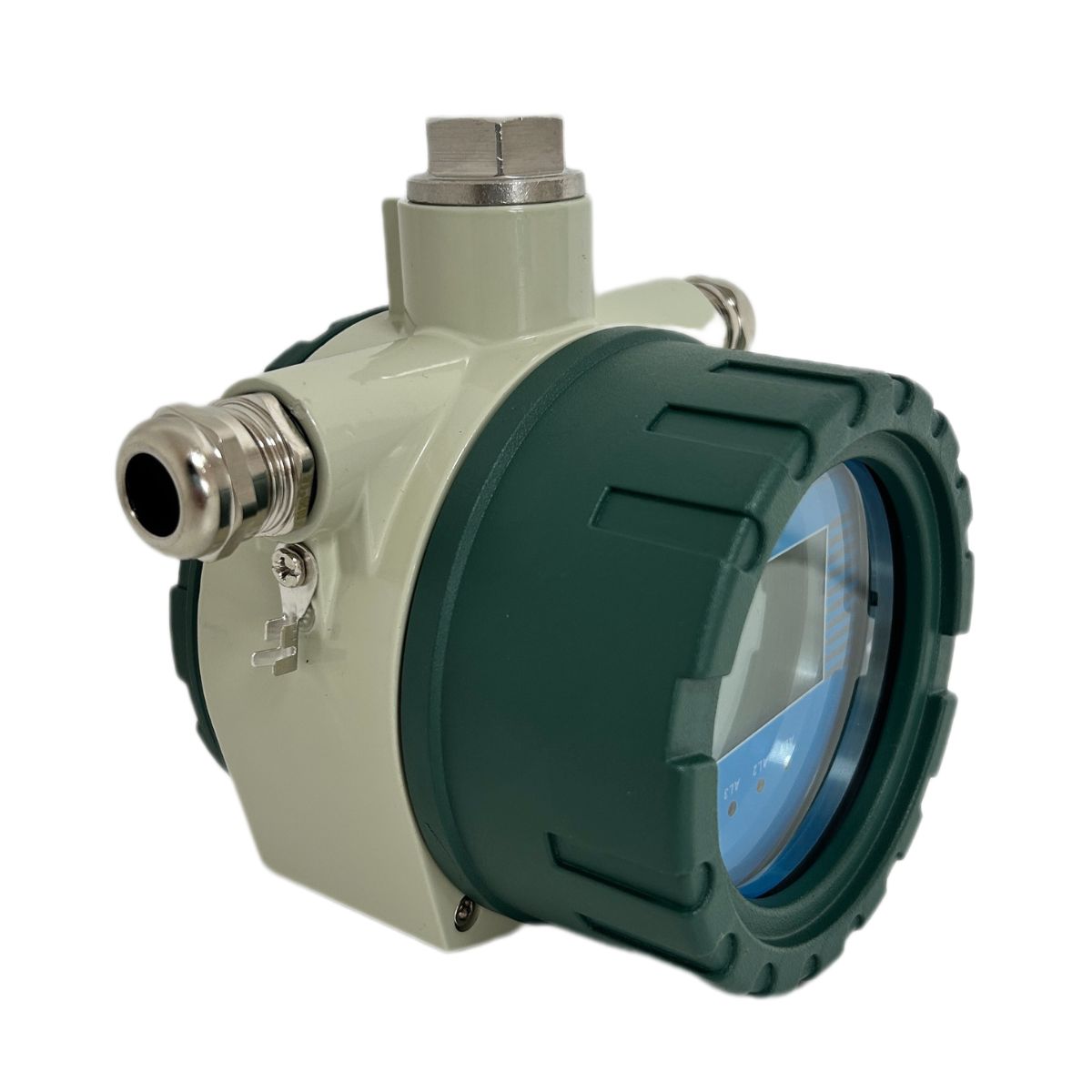

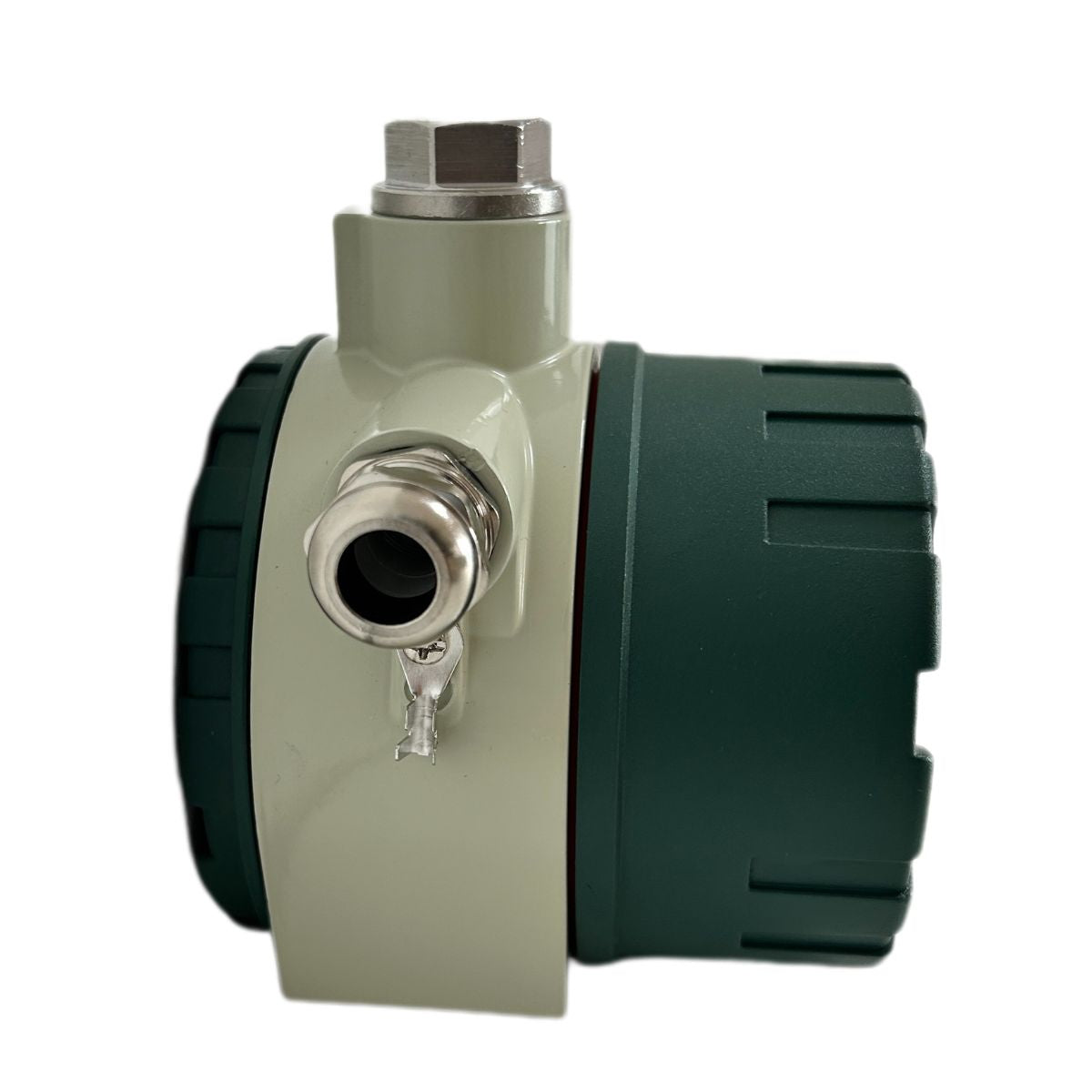

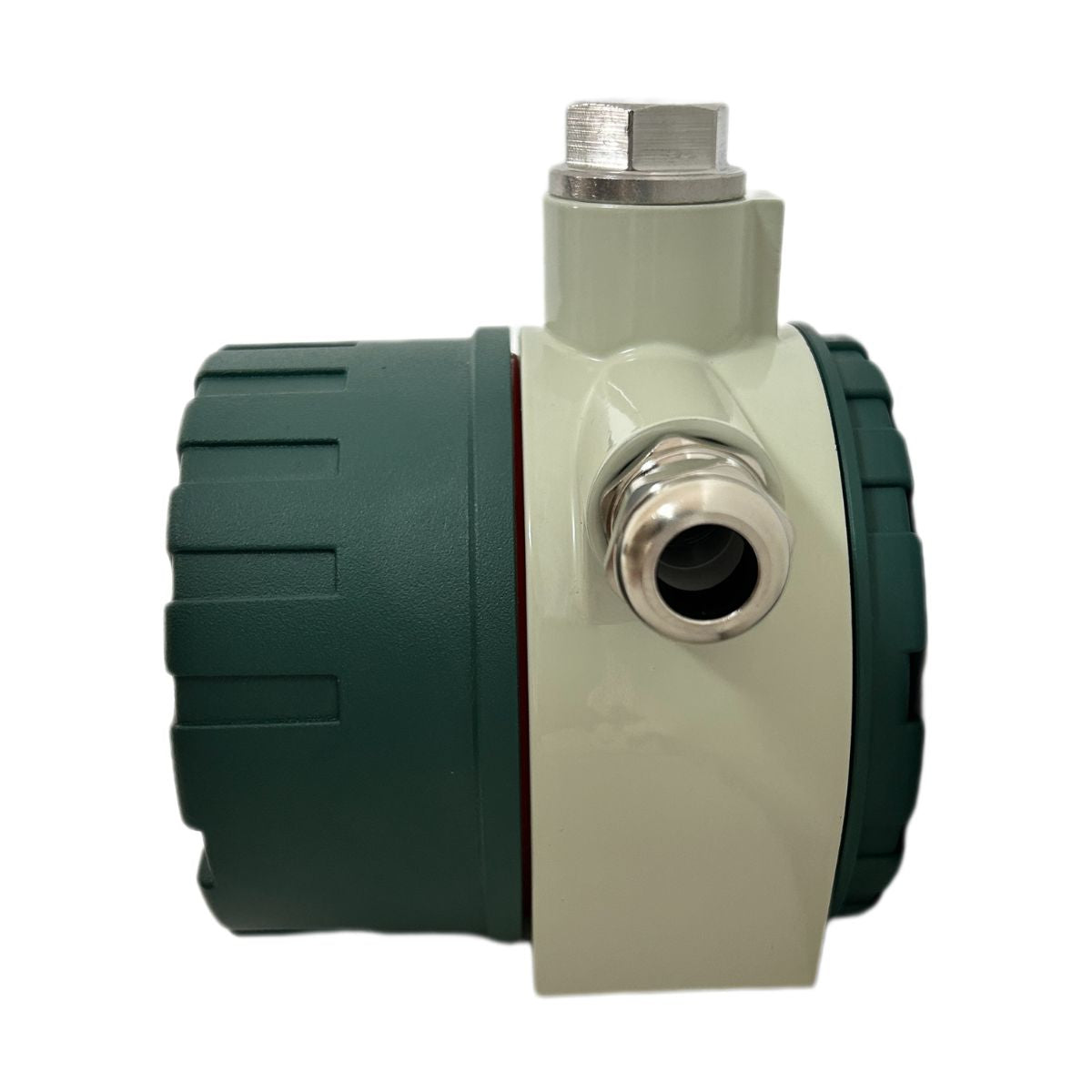

The entire product features an explosion-proof cast aluminum housing, which fully shields against external electromagnetic interference.
The central control room provides 24V DC power to each tank-side display, and the tank-side display supplies isolated 24V DC power to the radar.
The tank-side display receives radar signals, provides on-site display (with optional sound and light alarm), and simultaneously outputs signals to the central control room via RS485.

The tank-side display controller directly supplies power to the transmitter while receiving the 4-20mA signal from the transmitter.
All input and output signals are designed with isolated power supplies to ensure maximum on-site safe operation.
It features isolated outputs for 4-20mA and RS485 signals.
Equipped with an 8.8-inch wide-viewing-angle LCD screen, clear readings can be obtained from a distance of [X] meters.Note: The original text does not specify the exact distance for clear reading; please fill in the specific number (e.g., 5, 10) for "X" as needed.
The LCD screen comes with anti-reflective backlight, presenting a white background with black text. It ensures clear visibility during the day and bright display at night.
It meets the standards of intrinsically safe explosion protection, isolated explosion protection, and dust area explosion protection, with an IP67 protection rating.
