The electromagnetic flow meter (magmeter) operates based on Faraday’s Law of Electromagnetic Induction , a fundamental principle in electromagnetism discovered by Michael Faraday . Here’s a detailed breakdown of its working mechanism:
1. Core Physical Principle
When an electrically conductive fluid (such as water, wastewater, slurry, or corrosive liquids) flows through a magnetic field generated by the flow meter’s coils, it acts as a moving conductor . As the fluid cuts across the magnetic field lines (perpendicular to both the flow direction and the magnetic field), an induced electromotive force (EMF) is generated across two electrodes mounted on opposite sides of the measuring tube .
The magnitude of the induced voltage (U) is defined by the formula:U=B⋅D⋅vWhere:

U = Induced voltage (measured in volts, V)
B = Magnetic flux density (strength of the generated magnetic field, in Tesla, T)
D = Inner diameter of the measuring tube (in meters, m)
v = Average velocity of the flowing fluid (in meters per second, m/s)

Since the volumetric flow rate (Q) is calculated as Q=v⋅A (where A is the cross-sectional area of the tube, A=4πD2​), the induced voltage is directly proportional to the volumetric flow rate . This linear relationship makes magmeters highly accurate and easy to calibrate .
2. Key Components & Process

Magnetic Field Generation : Two field coils installed diametrically around the measuring tube generate a uniform magnetic field (typically using pulsed DC excitation with alternating polarity to ensure stability).
Fluid Flow & Induction : The conductive fluid flows through the magnetic field. The insulating lining (e.g., PTFE, rubber) of the measuring tube prevents short-circuiting of the induced voltage, ensuring it is only detected by the electrodes .
Voltage Sensing & Signal Processing : The electrodes pick up the tiny induced voltage signal. The transmitter then amplifies, filters, and converts this signal into a standardized output (e.g., 4-20mA, RS485 Modbus) or displays the flow rate directly on the integrated LCD .

3. Key Advantages of the Principle

No moving parts : Eliminates mechanical wear, resulting in minimal maintenance and zero pressure loss .
Unaffected by fluid properties : Measurements are independent of pressure, temperature, density, and viscosity of the fluid .
Suitable for complex media : Effective for slurries, sewage, and liquids with suspended solids, as the sensing mechanism does not clog or interact physically with the fluid .

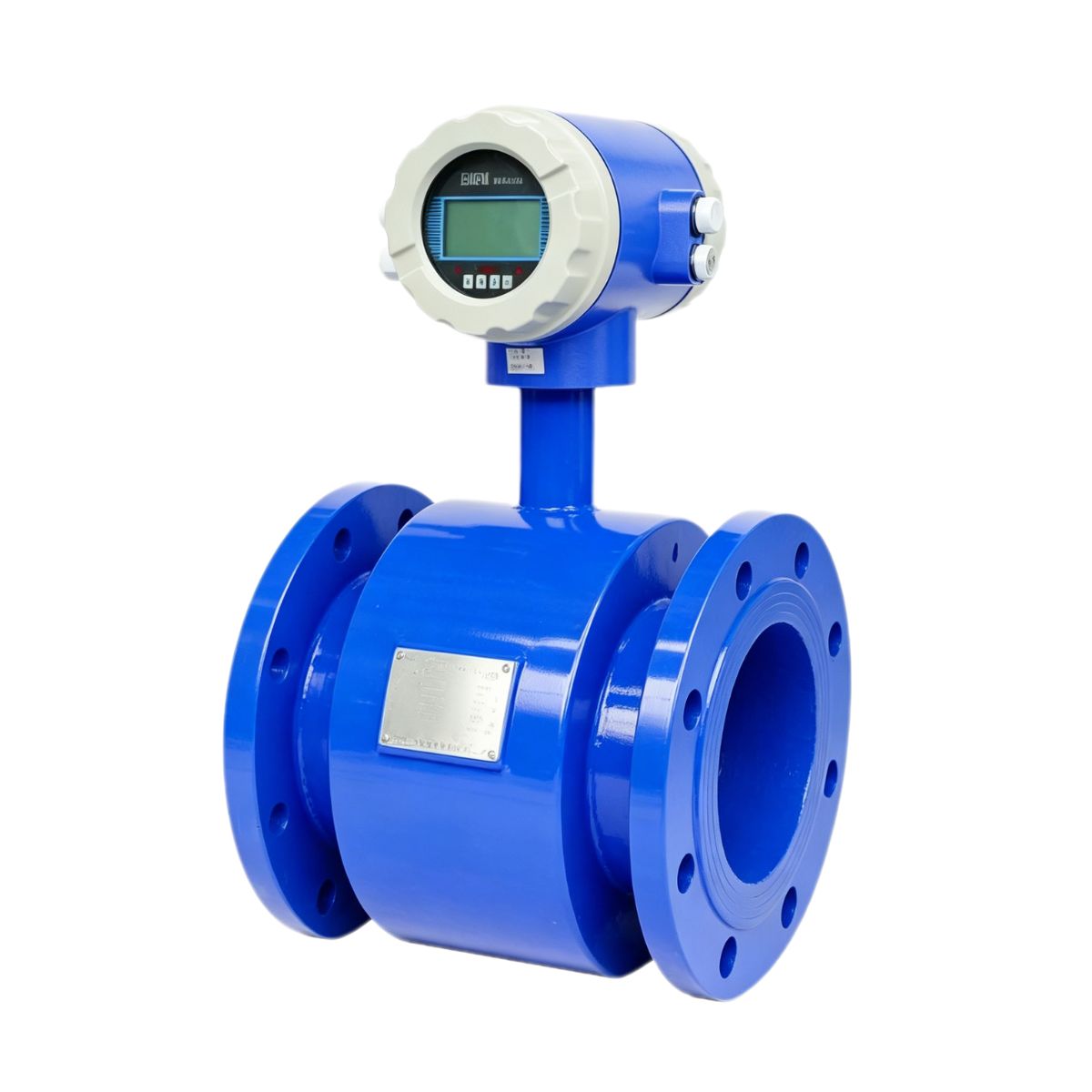

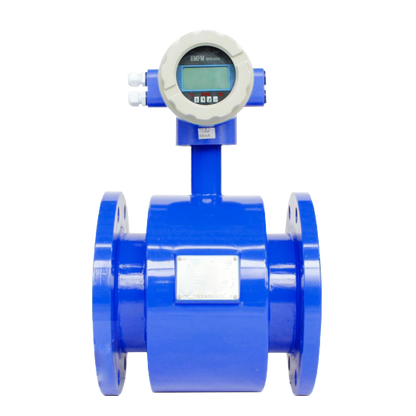

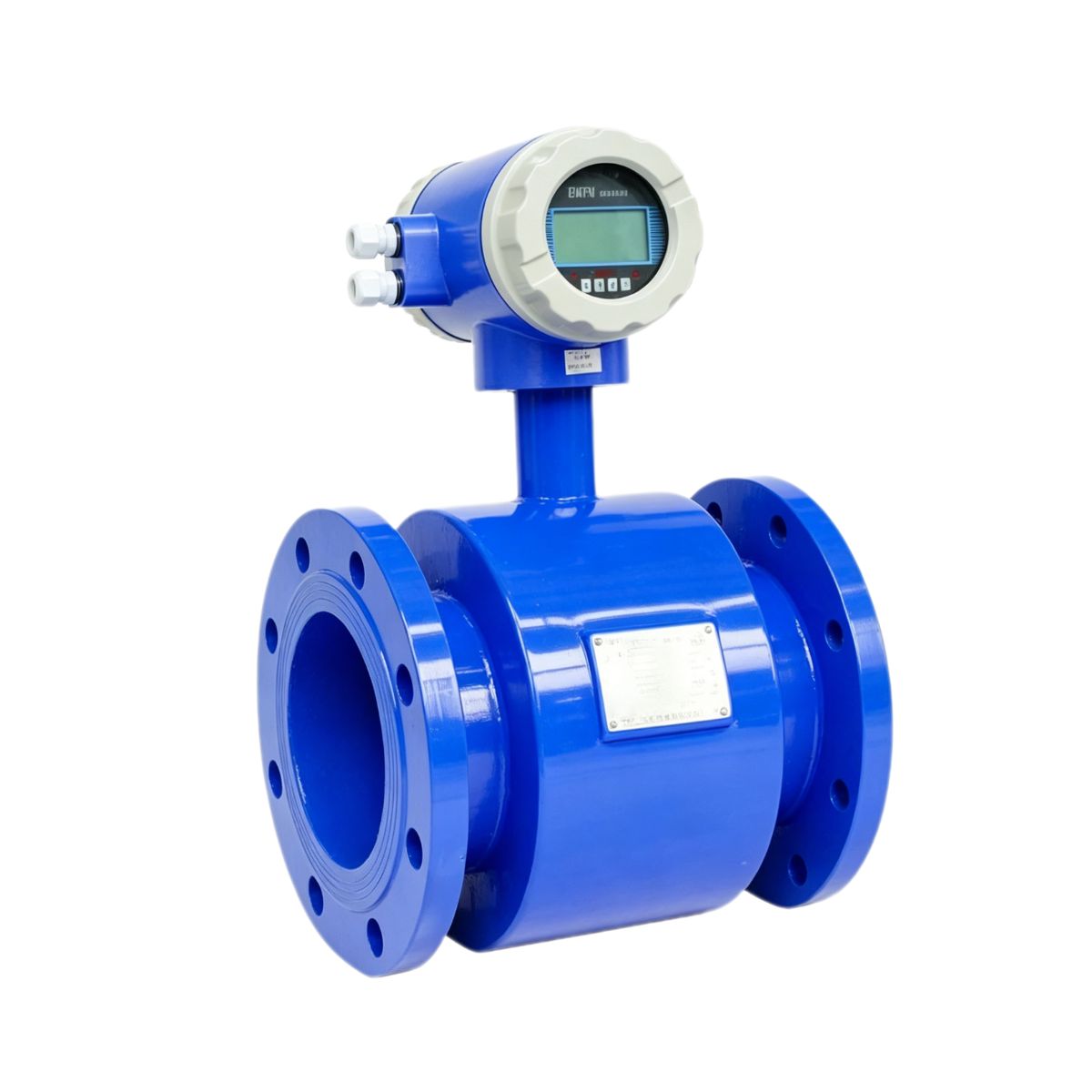

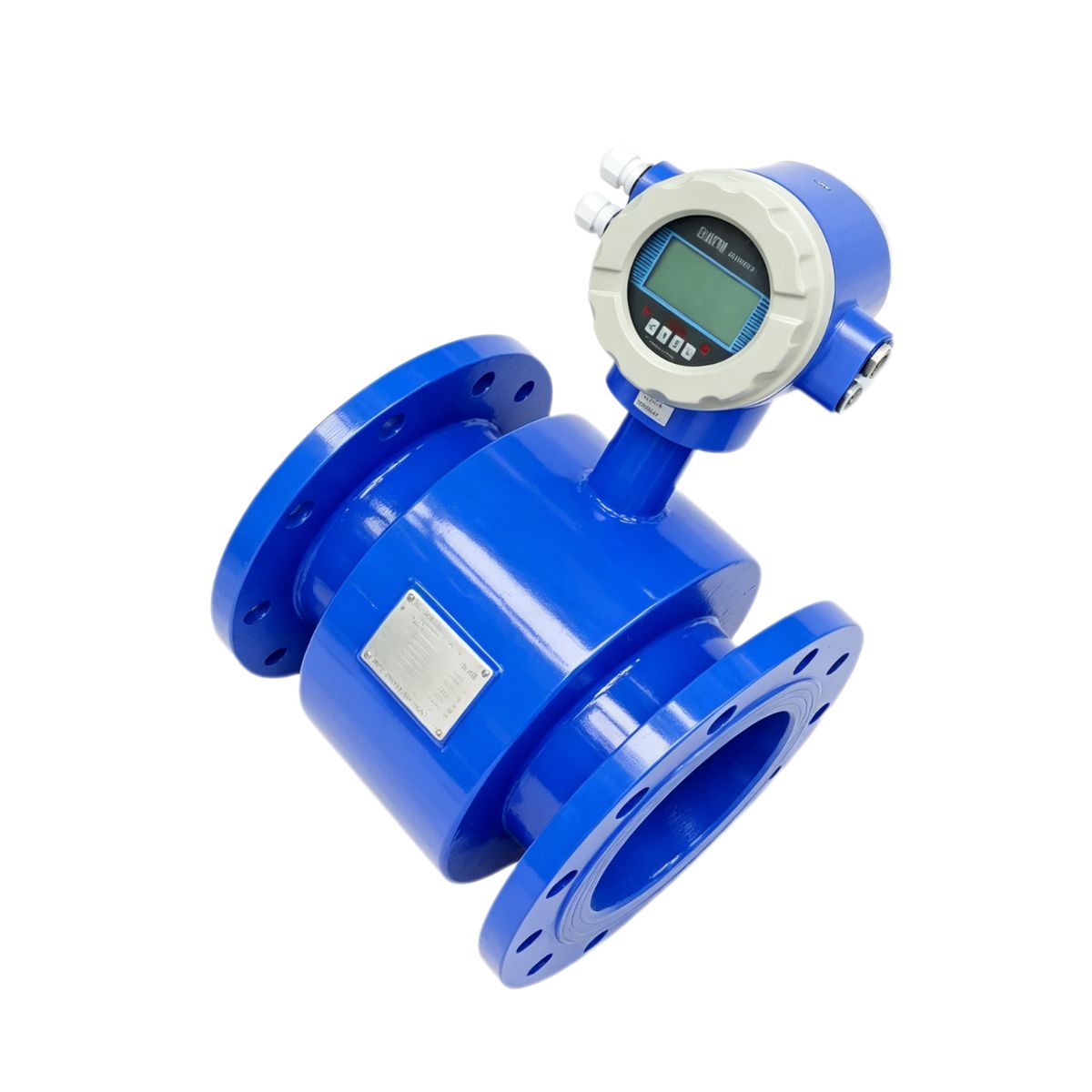

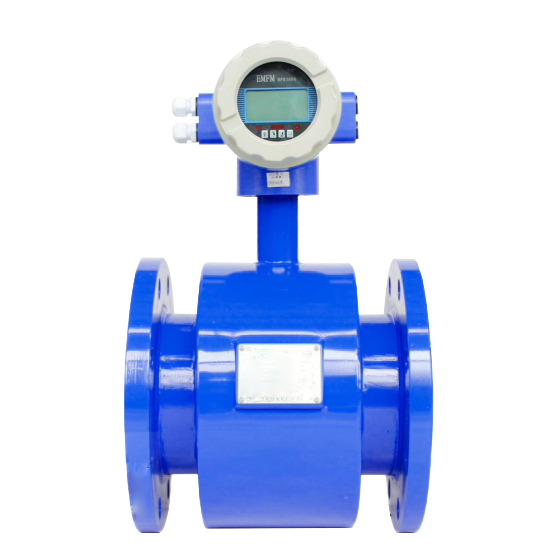

This electromagnetic flow meter is engineered for robust performance and versatility in industrial fluid measurement. Its design integrates precision engineering with user-friendly functionality, tailored to handle challenging media and harsh operating environments.
1. Measurement & Signal Design
High-Preccision Electromagnetic Sensor : Adopts advanced electromagnetic induction technology, ensuring linear measurement with high accuracy (standard accuracy grade available) and excellent repeatability.
Digital Signal Processing : Equipped with a high-speed microprocessor for real-time signal amplification, filtering, and conversion. It provides stable readings even in low-conductivity liquid conditions.
Multi-Parameter Display : Features a backlit LCD screen that clearly shows flow rate, total flow, velocity, and fault codes, enabling on-site data reading without additional instruments.
2. Construction & Material Design
Full Bore Measuring Tube : Smooth inner tube structure with no moving parts, eliminating pressure loss and reducing maintenance requirements.

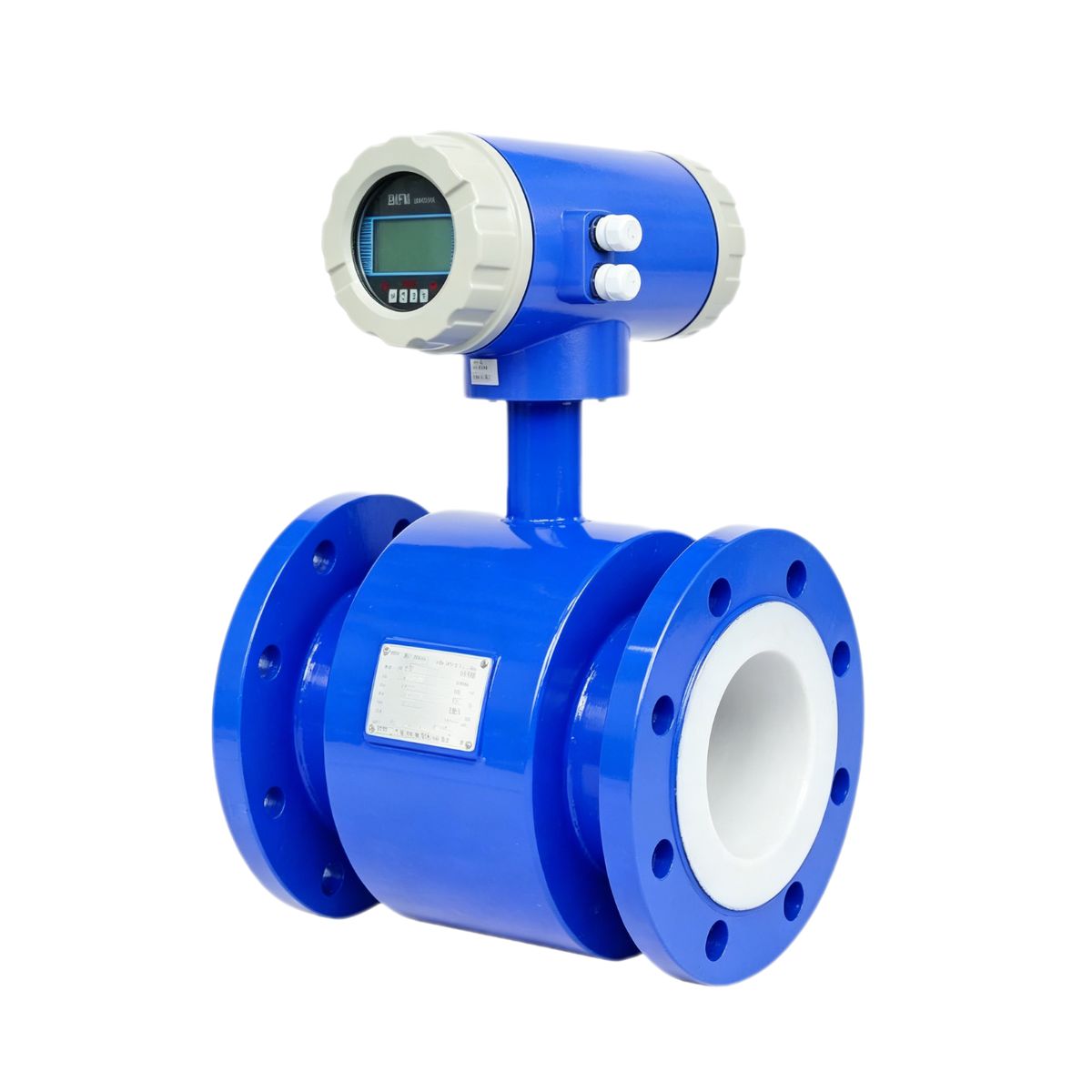

Wear-Resistant Liner : Available options include PTFE (Teflon) or neoprene/rubber liner, providing exceptional corrosion resistance, wear protection, and insulation properties to suit various media (acids, slurries, water).
High-Strength Electrodes : Standard 316L stainless steel electrodes, with optional Hastelloy or Titanium variants for extreme chemical resistance.
3. Environmental & Installation Design
Rugged Enclosure : IP65/IP67 rated housing protects against dust, water immersion, and industrial corrosion, making it suitable for both indoor and outdoor installations.
Compact & Integrated Structure : Integrates transmitter and sensor into one unit, saving installation space. The vertical display design allows for 360° rotation for easy reading angle adjustment.
Standard Flange Connection : Complies with international flange standards (ANSI/DIN/GB), ensuring easy integration into existing pipeline systems with minimal installation effort.
4. Operational & Safety Design
Low Power Consumption : Energy-efficient circuit design, suitable for battery-powered or remote monitoring applications.
Reverse Flow Measurement : Capable of detecting and displaying reverse flow, providing comprehensive flow data management.
Self-Diagnosis Function : Built-in fault detection system alerts users to electrode damage, liner failure, or signal abnormalities, improving system reliability.
