Please confirm specifications before ordering

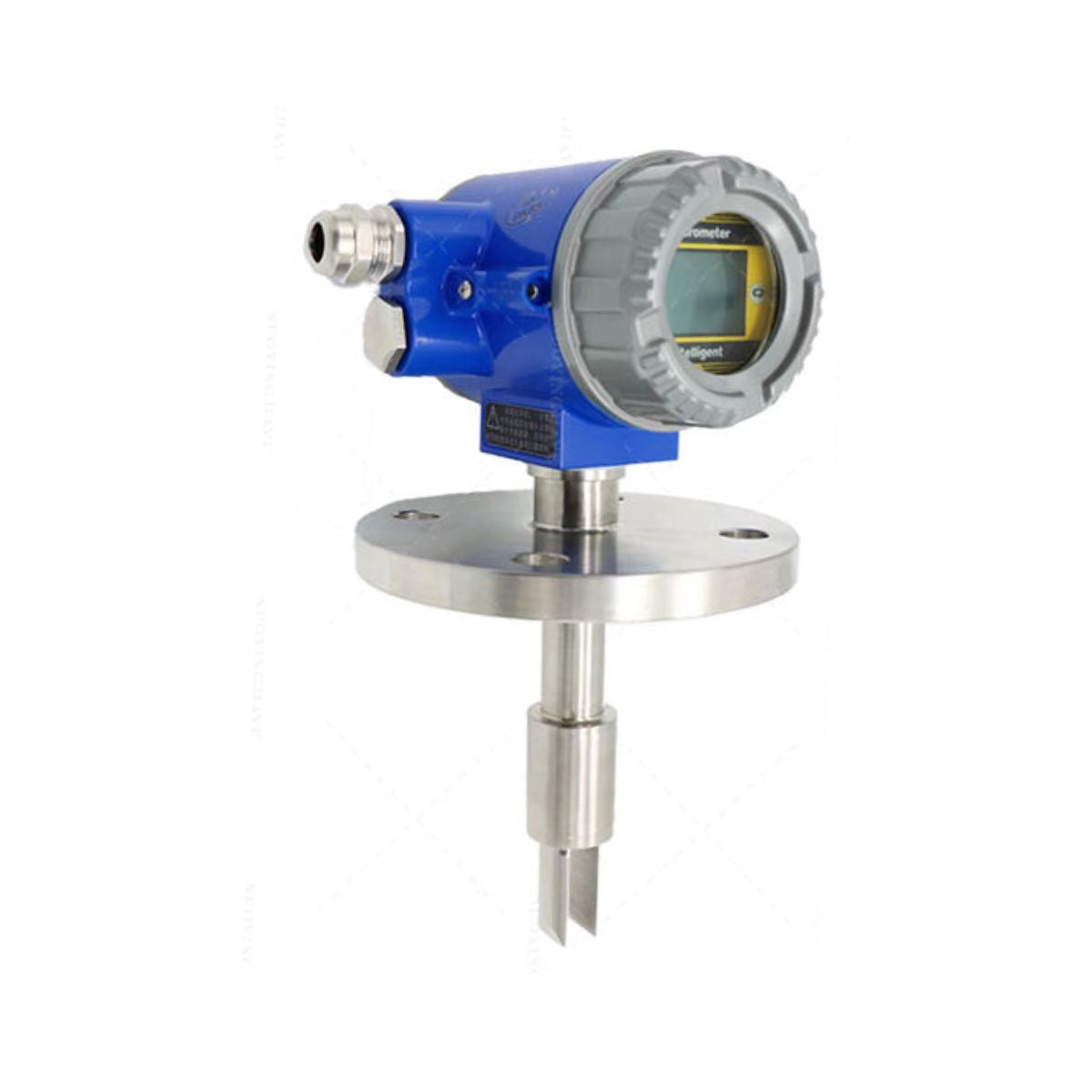

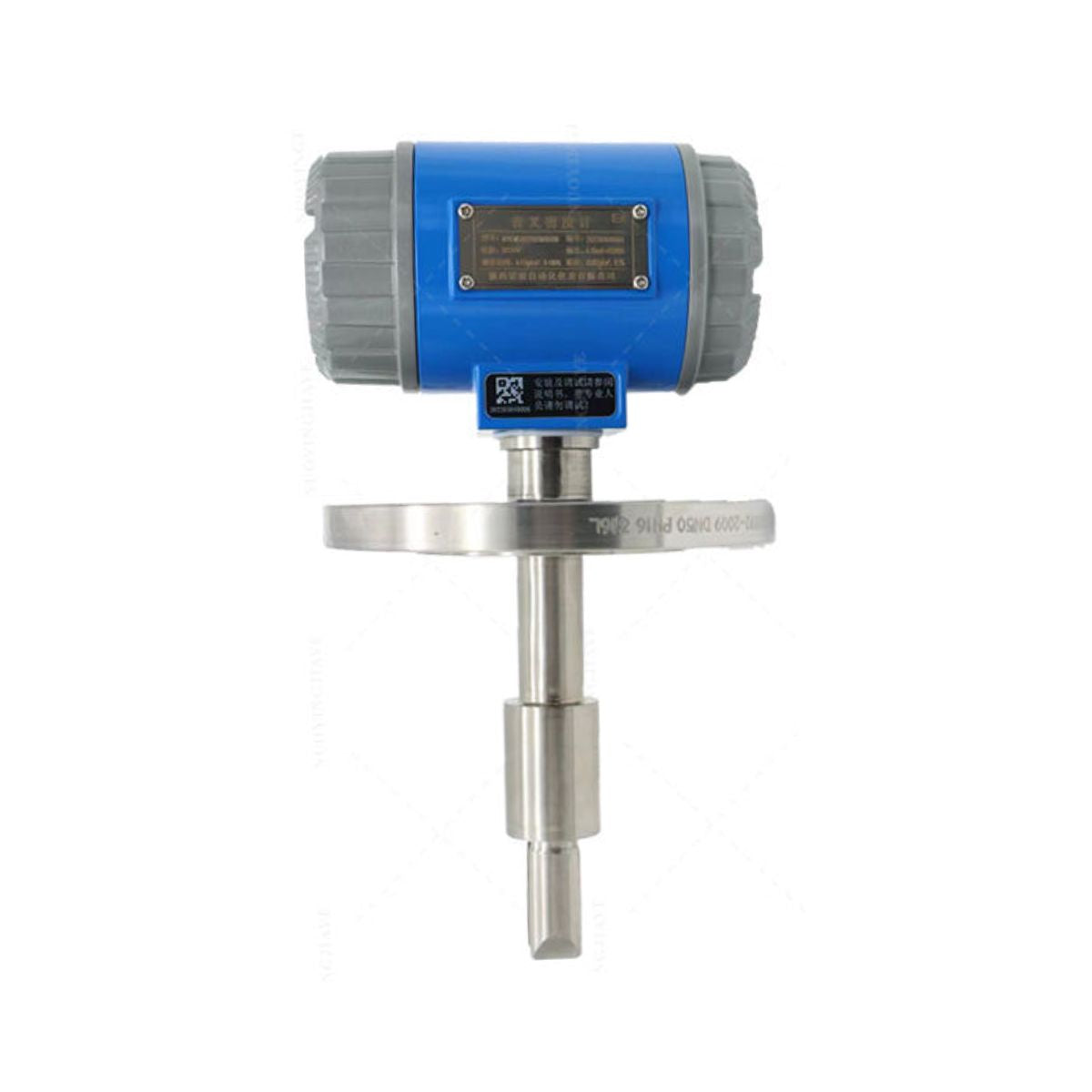

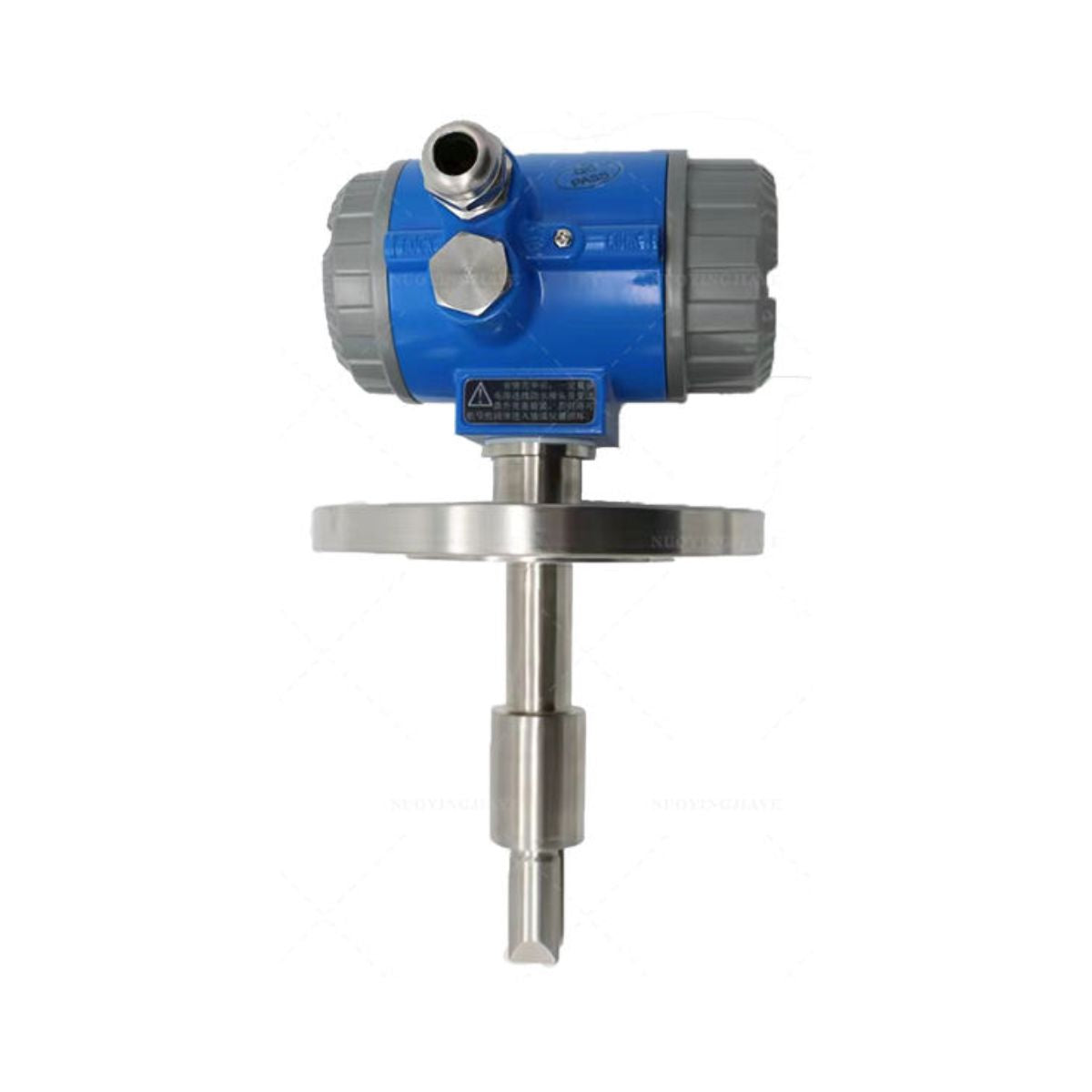

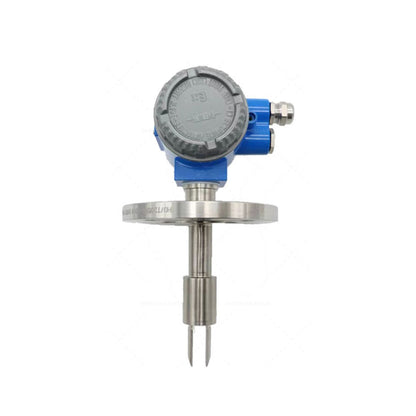

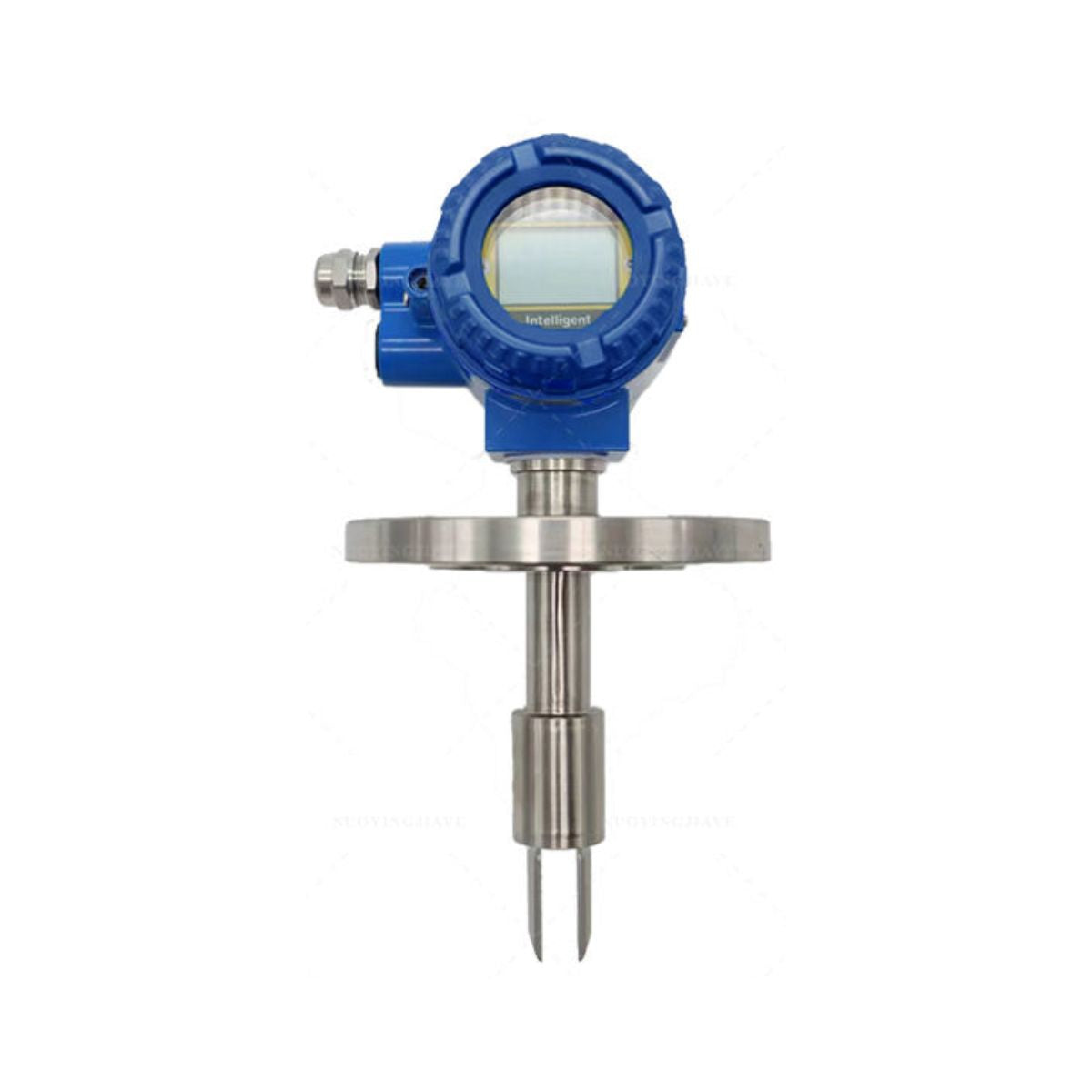

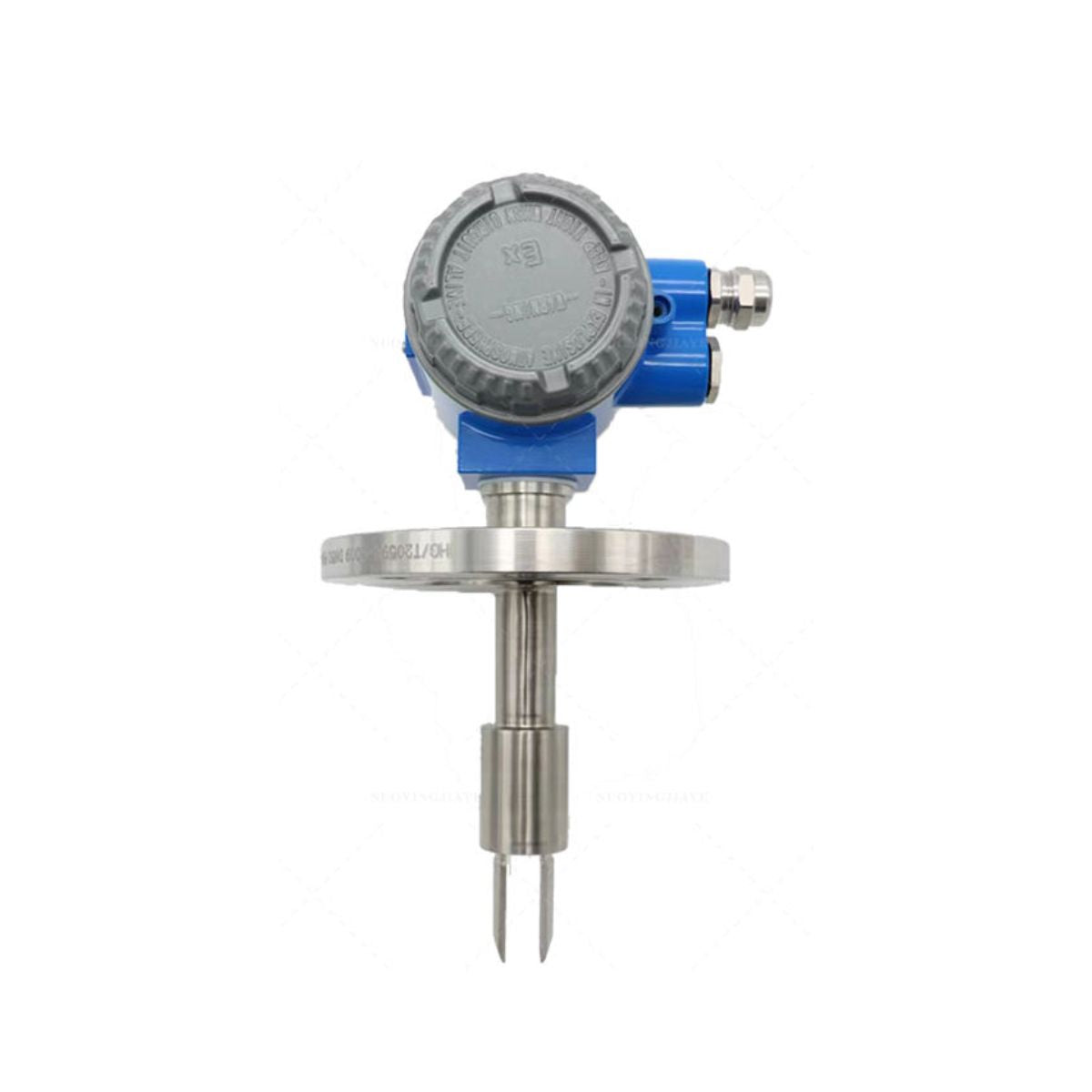

The sensor works based on the vibration principle of the component, with the sound fork part immersed in the liquid under test.The sound fork portion induces vibration through a piezoelectric device internally fixed to the bottom end of the fork body.The shock frequency is detected by a secondary piezoelectric device fixed to the other end of the fork body, and then the signal is amplified by a circuit at the top.The liquid density is closely related to the vibration frequency when the measured liquid flows, and then when the measured liquid density changes accordingly.By the equation D= K0 + K1T + K2T2, the density of the measured liquid can be accurately calculated.
D = Uncalibrated measured medium density (kg/m³)
T=Vibration frequency (μs).
K0、 K1,、K2=Constant
During the density detection process, the NYMD insert densitometer can automatically compensate for the effect of the temperature on the measured medium density (D), and the pressure has no significant effect on the density.

Suitable for the density measurement of tank, pipe, flow or stationary media.Suitable for measuring high temperature, low temperature, high viscosity containing impurities.
A microprocessor-based electronic conversion device that integrates signal processing, computing, and diagnostic functions.
Continuous online measurement of liquid density and temperature, high accuracy, more safe and reliable, can be directly used for production process control.
It can be directly communicated with the PC through the RS485 interface, and users can directly conduct online node configuration, fault diagnosis and data recording.
Measure the density and temperature at the same time, you can calculate the basic density, concentration percentage, masspercentage, volume percentage and other parameters.
Overpressure protection structure, superior temperature stability, full welding seal, the design is strong and reliable.
Easy to install and use, insert the liquid to display the reading.
Simplify maintenance without regular cleaning.
A standard reference source is not required for the calibration、 Laboratory calibration is not required、 No process interruption.
Intrinsically safe type can be used on hazardous sites, and sanitary type can be installed on food production sites.
